4D 5D Color Ultrasonic Diagnostic Apparatus, Portable Color Doppler Ultrasound Scanner Mslcu64

Overview

Basic Info.

Model NO.	MSLCU64
Mode	2b,4b,Pw,Cw,3D,4D,5D
Application	Abdominal,Ob&Gyn,Cardiac,Urinary,Msk etc.
Probe Connectors	Two
Display	15inch LED Display
Product Name	Color Ultrasonic Diagnostic Appartatus
Item	Mslcu64
Transport Package	Cartons
Origin	China
HS Code	9018121000
Production Capacity	2000sets/Month

Product Description

4D 5D Color Ultrasonic Diagnostic Apparatus

MSLCU64

Product Description

Color Ultrasound System

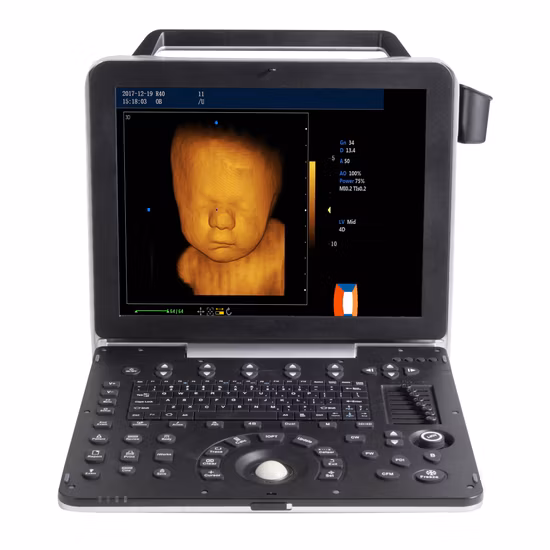

4D 5D Color Ultrasonic Diagnostic Apparatus Portable Color Doppler Ultrasound Scanner

Combined with clinical needs and advanced technical measures, the data processing capacity and operation efficiency are greatly improved, and the operation accuracy is improved. Easy operation process, quick response to diagnostic needs, can easily deal with complex situations in mobile diagnosis. Perfect professional software package (abdomen, obstetrics, urology, etc.) to effectively solve the basic layer of medical needs.

Applications

For Abdominal, OB&GYN ,Cardiac, Urinary, Small Parts, Superficial, Vascular, Pediatrics (neonatal), MSK, Physical examination and other aspects of examination and diagnosis.

Feactures

Hard disk dynamic and static image storage, real-time sharingWindows embedded ultrasonic running platformWith automatic tracing, trapezoidal imaging, one key automatic optimization and other functionsAutomatic spectrum measurement

The obstetric model can modify a variety of measurement combinationsTake ergonomic design into considerationDICOM function, can be directly connected with the hospital PACS system
Rich Optional Transducers
Convex probe Linear probe Trans-vaginal probe Trans-rectal probe Micro-convex probe Phased array probe 4D Volume probe

Convex Probe:2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz,(Depth 20-317MM)Linear Probe:6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz,(Depth 20-110MM)Transvaginal probe:4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz,(Depth 30-111MM)Phased Array probe : 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz,(Depth 30-371MM)4D Volume probe:2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz,(Depth 30-237MM)Micro convex probe(R15):4.0MHz/6.0MHz/7.0MHz/8.0MHz/H8.0MHz,(Depth 30-111MM)Micro convex probe(R20):2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz,(Depth 30-23.7MM)All the probes aboved has harmonic frequencyUnder each probe, there is a selection of specialties and organ modes to quickly enter the test.
Clinical Images

Product Parameters

Structure Type	Portable
Ultrasonic host operating system	Windows 8 operating system
Language	CN/EN/FR/SP/RU
Monitor	15 inches, high definition medical LED display
Display	0-30*adjustable
Probe connectors	Two
Video playback	600 frames
Report type	17 kinds
lmages save format	BMP DICOM JPEG DEFAUIT
USB Port	Two
Audio Port	One
LAN Port	Two
HDMI Port	One
DP Port	One
Probes	Convex Probe,Linear Probe,Micro-convex Probe(R20),Phased array Probe,Transvaginal Probe,4D Volume Probe

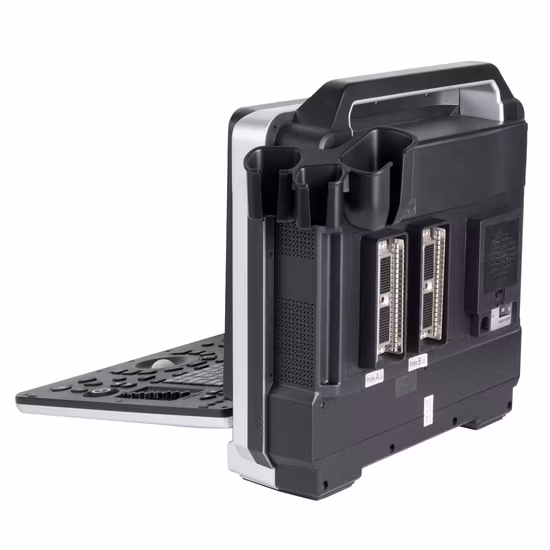

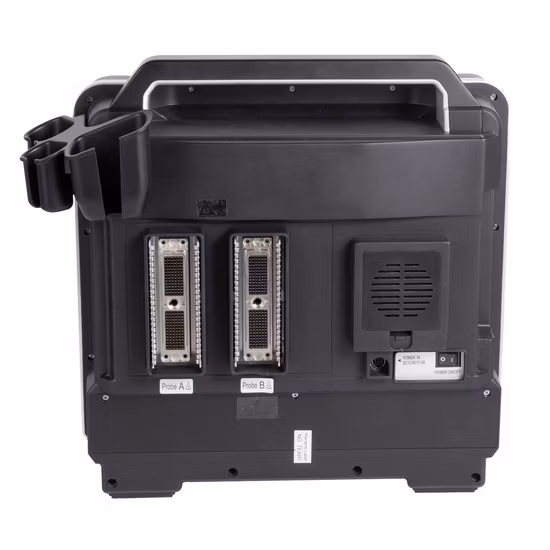

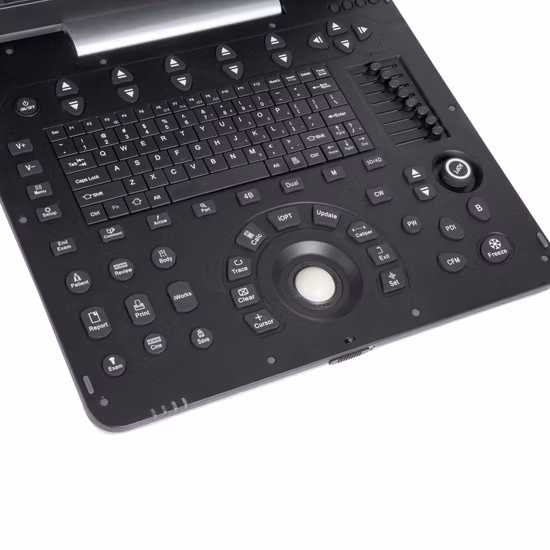

Detailed Photos
